*   We can supply Old and New Anchor.
*   New Anchors with certificates can be supplied duly approved by classified society.
*   Large anchors and different models are also available on request.
*  You ask ! We have it !!
BALDT TYPE

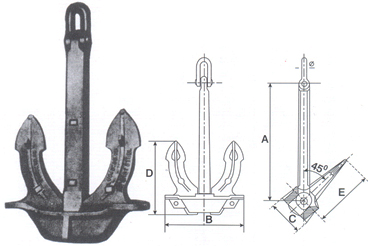

Can be Supplied against Specific requirements 		HALL TYPE
Anchor Weight Dimensions in mm
A B C D E Ø
50 575 410 184 378 300 15
75 660 480 210 429 340 15
100 723 510 230 474 375 20
125 780 550 245 511 405 20
150 935 580 264 544 430 20
180 888 625 281 578 454 20
200 315 645 290 594 470 25
225 950 670 300 622 493 25
240 985 694 312 644 510 25
275 1020 710 322 666 527 25
300 1050 738 330 685 543 30
325 1075 758 338 703 557 30
360 1100 778 346 719 570 30
400 1150 810 360 752 595 30
420 1175 826 368 767 607 30
450 1200 845 373 784 620 35
480 1220 860 380 797 630 35
500 1240 875 386 810 640 35
570 1280 904 400 837 660 40
600 1320 930 410 860 680 40
660 1360 955 420 887 700 40
700 1390 980 430 907 715 45
750 1425 1000 440 927 730 45
780 1450 1030 450 948 750 45
850 1480 1050 460 968 767 50
900 1490 1053 480 970 772 50
950 1520 1072 484 994 787 50
1020 1545 1090 496 1005 800 55
1140 1600 1126 512 1037 825 55
1200 1650 1165 530 1076 855 55
1290 1670 1180 535 1089 865 60
1350 1700 1205 550 1120 890 60
1440 1800 1245 555 1147 895 65
1590 1890 1260 565 1181 900 65
1740 1910 1290 582 1238 945 65
1920 1930 1362 616 1262 999 70
2100 2020 1407 623 1296 1020 70
2280 2040 1446 640 1332 1033 70
2460 2120 1483 667 1367 1076 75
2640 2170 1519 672 1400 1085 75
Anchor Weight Dimensions in mm
A B C D E Ø
2850 2200 1540 700 1434 1140 75
3060 2261 1596 720 1480 1172 80
3300 2330 1636 734 1508 1180 80
3540 2335 1650 674 1528 1210 80
3780 2679 1844 733 1600 1295 80
4050 2466 1740 712 1613 1278 90
4320 2557 1790 763 1659 1290 90
4590 2784 1889 780 1709 1384 90
4890 2923 2011 804 1746 1413 100
5250 2728 1910 846 1760 1364 100
5610 2788 1952 864 1798 1394 100
6000 3270 2033 829 1878 1525 100
6450 2920 2046 906 1885 1461 110
6900 2930 2064 932 1904 1512 110
7350 3072 2150 950 1982 1536 120
7800 3113 2179 965 2008 1556 120
8300 3208 2246 995 2070 1604 120
8700 3253 2270 1005 2097 1626 130
8900 3268 2275 1012 2108 1634 130
9300 3301 2311 1023 2129 1650 130
9900 3330 2360 1045 2175 1686 140
10200 3.338' 2372 1070 2186 1694 140
10500 3438 2407 1075 2217 1719 140
11100 3502 2452 1086 2259 1751 140
11700 3565 2495 1105 2295 1780 150
12300 3600 2520 1140 2325 1800 150
12900 3681 2577 1141 2374 1840 150
13500 3738 2616 1159 2411 1869 160
14100 3793 2655 1176 2446 1896 160
14700 3845 2690 1190 2480 1925 160
15400 3880 2716 1210 2502 1940 170
16100 3964 2775 1229 2557 1982 170
16900 4030 2820 1250 2600 2015 170
17800 4099 2869 1270 2644 2049 180
18800 4175 2920 1295 2690 2085 180
20000 4262 2985 1320 2750 2130 180
21500 4365 3055 1355 2815 2180 200
23000 4485 3125 1385 2880 2230 200
24500 4560 3190 1415 2940 2280 200
26000 4651 3255 1442 2999 2325 220
27500 4720 3315 1470 3055 2370 220
29000 4825 3375 1495 3110 2410 220
