SVC 0.5L ~5L

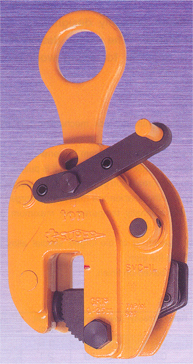

Vertical lifting clamp for the lifting of steel plates and steel structures.

FEATURES
  • The spring-loaded tightening lock mechanism assures a positive initial clamping force.
  • With the use of a remote control lever and rope, which are supplied with the clamp, the clamp can be unlocked from the floor to detach from the work piece.
  • The clamping force increases in proportion to the weight of the load.
  • The main body and the shackle are made of die-forged special alloy steels, which are optimally tempered for maximum strength and durability.
  • High-frequency quenching of die-forged special alloy steels gives greater durability to the cam.
  • The main body is a baked-on finish.

    • SPECIFICATIONS
    Item No. Rated capacity (ton) Jaw opening (mm) Weight (kg) Remarks
    SVC 0.3L 0.5 0~19 3
    SVC 0.5L 1 0~25 6
    SVC IL 2 0~30 10.5
    SVC 1.5L 3 0~35 12.5
    SVC 2L 5 0~40 21.5

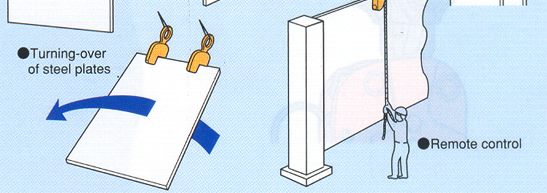

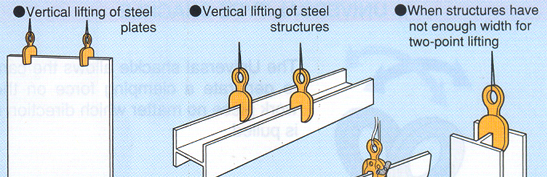

    EXAMPLES OF USE
    Always lift work pieces at 2 or more points for safety.

    TIGHTENING LOCK MECHANISM

    (Tightening)
  • The clamp will lock onto the work piece when the lock lever is pulled completely upwards as shown in the drawing.
  • When locked, the shock from the work piece coming to rest on the floor or the slackening of the sling rope will not cause the clamp to come lose from the work piece.
    		•

    (Tightening)
  • The clamp will unlock and the cam will retreat into the body when the lock handle is pulled completely downwards as shown in the drawing.
  • When the clamp is high out of reach, the clamp can be unlocked via the remote control unlocking lever and rope.
    		•
    		DIMENSIONS TABLE
    Item No. L(max) H h1 h2 ha B b1 D2 D1 D2 T1 T2 T3 t
    SVC 0.5L 250 158 80 60 36 131 36 26 36 64 89(80) 67 49 12
    SVC 1L 310 185 90 69 45 151 42 32 48 85 113(104) 81 59 16
    SVC2L 375 210 100 77 47 172 48 39 60 106 130(118) 97 71 18
    SVC3L 405 225 105 81 47 182 51 42 66 117 141(129) 102 75 20
    SVC5L 455 260 120 95 49 220 65 50 84 148 157(145) 122 92 22
