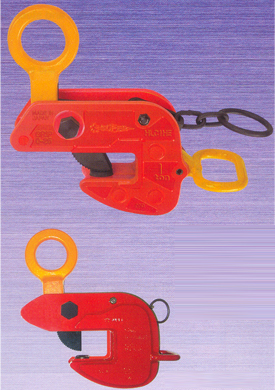

HLC1HE ~ 12WHE
Clamp for lateral (horizontal) lifting of steel plates and structural steels (H , I, T and L shaped steel structures)
FEATURES
The spring-loaded tightening lock mechanism assures a positive initial clamping force.
The clamping force increases in proportion to the weight of the load.
The main body is made from die-forged special alloy steels, which is optimally tempered for maximum strength and durability.
High-frequency quenching of die-forged special alloy steels gives greater durability to the cam.
The main body is a baked-on finished
The handle makes it easy and safe to set and detach the clamp onto and from the work piece.

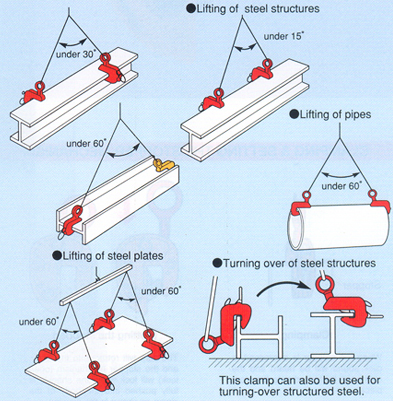

Always lift work pieces at 2 or more points for safety.
|
SPECIFICATIONS - DIMENSIONS TABLE
Item No. |
Rated capacity (ton) |
Jaw opening |
H (MAX.) |
h1 |
h2 |
h3 |
b1 |
b2 |
b3 |
A |
B |
D1 |
D2 |
t |
T1 |
T2 |
T3 |
Weight (kg) |
HLC1HE |
1 |
0-25 |
208 |
27 |
38 |
115 |
122 |
56 |
34 |
229 |
173 |
40 |
65 |
12 |
49 |
65 |
86 |
3.0 |
HLC2HE |
2 |
0-30 |
246 |
32 |
48 |
140 |
143 |
65 |
40 |
273 |
203 |
50 |
80 |
16 |
61 |
80 |
1 04 |
5.5 |
HLC2WHE |
2 |
0-40 |
265 |
43 |
56 |
161 |
151 |
62 |
35 |
262 |
209 |
50 |
80 |
16 |
64 |
68 |
100 |
5.9 |
HLC3HE |
3 |
0-35 |
292 |
37 |
58 |
168 |
162 |
74 |
45 |
307 |
237 |
60 |
100 |
18 |
75 |
93 |
104 |
9.5 |
HLC4HE |
4 |
0-40 |
337 |
42 |
68 |
195 |
181 |
83 |
50 |
350 |
270 |
70 |
120 |
20 |
87 |
106 |
118 |
13.5 |
HLC4WHE |
4 |
25-60 |
379 |
65 |
77 |
229 |
208 |
98 |
65 |
360 |
303 |
70 |
120 |
20 |
91 |
99.5 |
112 |
19.0 |
HLC6HE |
6 |
0-45 |
385 |
47 |
81 |
222 |
212 |
90 |
55 |
380 |
312 |
80 |
140 |
22 |
102 |
118 |
134 |
23.0 |
HLC6WHE |
6 |
25-65 |
419 |
70 |
81 |
245 |
227 |
105 |
70 |
417 |
347 |
80 |
140 |
22 |
103 |
118 |
134 |
29.0 |
HLC8HE |
8 |
10-70 |
525 |
75 |
95 |
300 |
328 |
130 |
80 |
529 |
458 |
80 |
160 |
25 |
124 |
140 |
124 |
50.0 |
HLC8WHE |
8 |
30-90 |
552 |
95 |
95 |
320 |
328 |
130 |
80 |
529 |
458 |
80 |
160 |
25 |
124 |
140 |
124 |
52.0 |
HLC12HE |
12 |
20-80 |
573 |
85 |
100 |
335 |
342 |
134 |
80 |
553 |
482 |
80 |
160 |
32 |
142 |
166 |
142 |
70.0 |
HLC12WHE |
12 |
40-1CG |
593 |
105 |
100 |
355 |
342 |
134 |
80 |
553 |
482 |
80 |
160 |
32 |
142 |
166 |
142 |
72.0 |
|
|
|
|
|
