CONFIRMS to EN - 13414 -3:2003

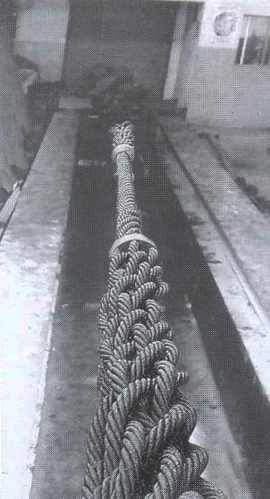

Load Testing of 124 mm Sling on our 500 Tons Pull Test Machine.

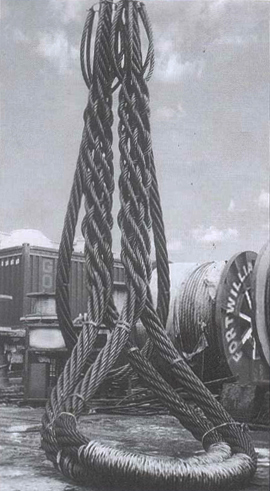

CABLE LAID ROPE SLING LOOP TYPE FOS-1:3
Nominal Rope Dia. Outer Unit Rope Dia. Core Dia. Calculated Breaking Load Approximate Mass weight
MM INCH MM MM KN M/TON KG/METER
102 4 32 36 3980 405 31.6
114 4 1/2 36 42 5102 520 40.5
120 4 3/4 38 44 5690 580 48.0
124 5 40 44 6280 640 53.0
134 5 1/4 42 48 6918 705 58.0
140 5 1/2 44 50 7652 780 61.0
152 6 48 56 9125 930 73.0
166 6 1/2 52 60 10595 1080 85.0
178 1 56 64 12362 1260 98.0
191 7 1/2 60 71 14275 1455 112.0
204 8 64 76 16728 1705 133.0
Breaking load Calculated in accordance with plant and machinery (PM-20) and IS:2266/89 the safe working load is one third of the C.M.B.L.
CABLE LAID ROPE SLING LOOP TYPE FOS-1:3
Nominal Rope Dia. Unit Rope Dia. Calculated Breaking Load Approximate Mass weight
MM INCH MM KN M/TON KG/METER
60 2 1/4 20 2404 245 13
66 2 1/2 22 3140 320 16
72 23 24 3728 380 20
78 3 26 4258 434 20
84 3 1/4 28 5102 520 26
90 3 1/5 30 5887 600 30
96 3 3/4 32 6671 680 33
108 4 1/4 36 8261 842 43
114 4 1/4 38 951 970 49
120 4 3/4 40 10517 1072 52
126 5 42 11773 1200 59
132 5 1/4 44 12754 1300 62
144 5 3/4 48 14716 1500 75
150 6 50 16481 1680 82
Breaking load Calculated in accordance with IS;2266 / 89.
Cross Section (Table-16)
Looped Type Slings

Cable Sling consists of six main wire ropes of one particular size & Construction caging one centre wire rope of Larger size. 		Cross Section (Table-17)
Endless Grommet Slings

Cable Endless Sling consists of six main strands of Ropes, over one stand of equal Size & Construction laid as centre core.
Note: In the interest of constant research &, development we reserve the right to change the design & specifications without notice.
